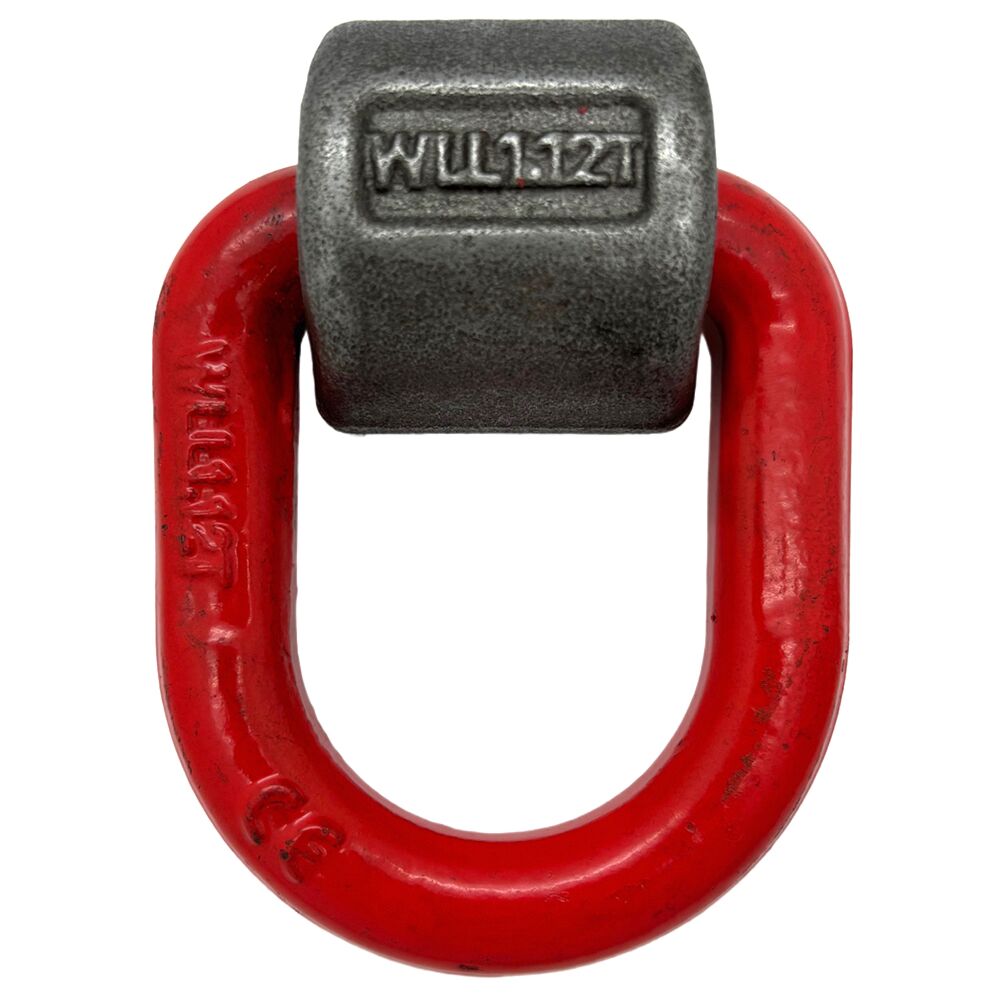

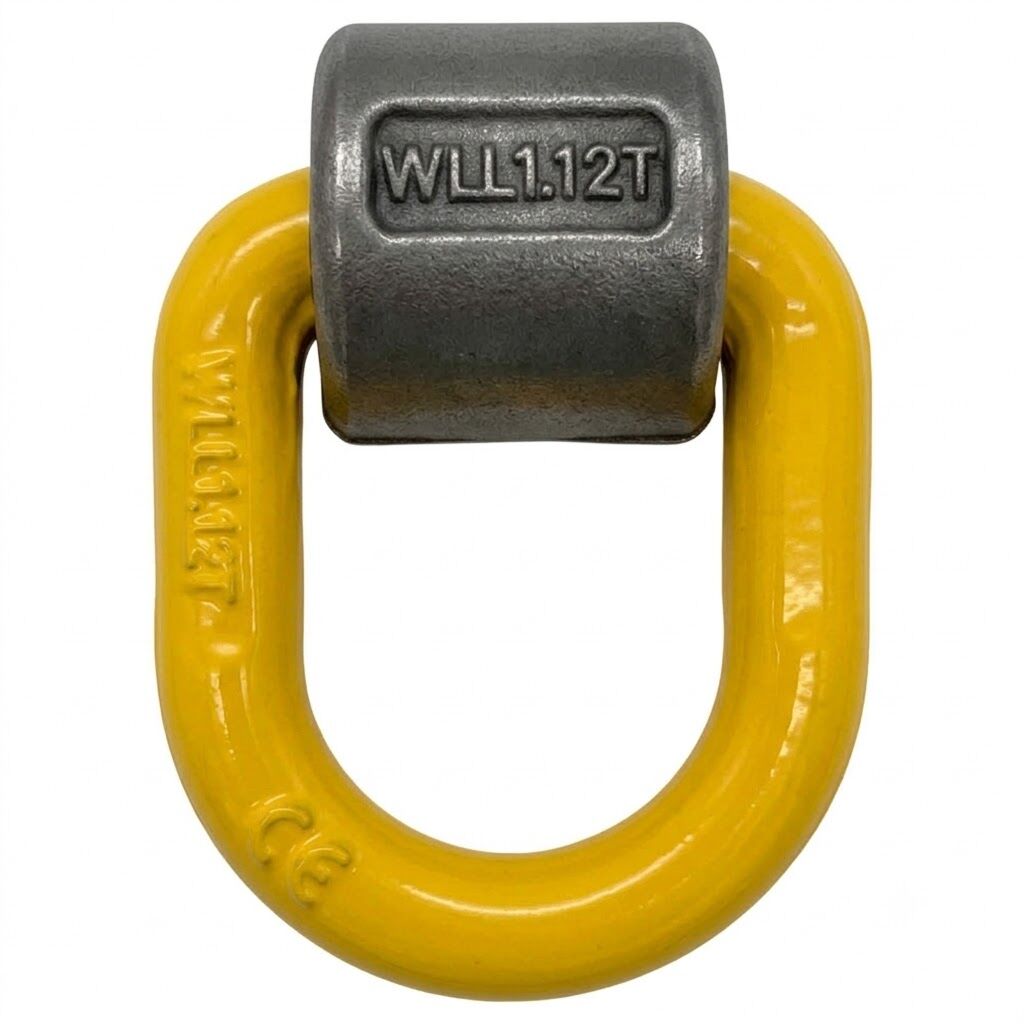

Grade 80 Weld On Lashing D Link High Tensile Steel

Weld On Lashing Link High Tensile Steel

These lashing d rings conform to EN12640 and have a 2:1 safety factor, they are WLL and CE marked

The D ring is made from Grade 80 Steel and pivots 180 degrees

To achieve full load these rings must be welded in accordance to DIN5817 resp 15429 by a qualified welder to EN287-1





In stock
Grouped product items
Product Name A (mm) B (mm) H (mm) D (mm) M (mm) WLL Tons PRICE Qty
1.12ton Weld On D Ring 40 80 40 13 35 1.12
£7.19 £5.99
2.00ton Weld On D Ring 42 90 40 14 38 2.00
£8.39 £6.99
3.15ton Weld On D Ring 45 95 45 16 40 3.15
£10.79 £8.99
5.30ton Weld On D Ring 55 115 60 23 45 5.30
£16.79 £13.99
Show Price without VAT
