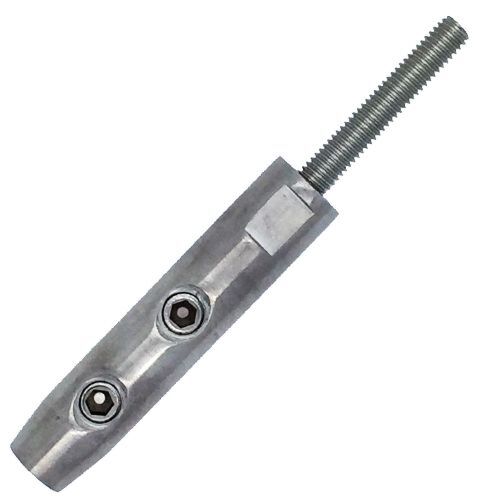

Stainless Steel DIY Grub Screw Stud Terminal

GS Products supply A4 - AISI 316 stainless steel marine grade stud terminals for wire rope.

These grub screw stud terminals are available in sizes to suit 3mm, 4mm, 5mm and 6mm diameter steel wire rope.

To attach to your wire simply tighten down the 2 grub screws - no need for expensive swaging tools.

The threaded stud is right handed and can be totally screwed out making this fitting either male or female.



In stock
Grouped product items
Product Name D (mm) G (mm) L2 (mm) L1 (mm) Suit Wire Ø (mm) L3 (mm) L4 (mm) Break Load (Kgs) PRICE Qty
3mm Terminal 11 M5 8 53 3 36 34 300
£4.79 £3.99
4mm Terminal 13 M6 9 58 4 38 37 400
£5.99 £4.99
5mm Terminal 14 M6 9 65 5 45 37 500
£5.99 £4.99
6mm Terminal 16 M8 12 73 6 47 45 600
£7.19 £5.99
Show Price without VAT
