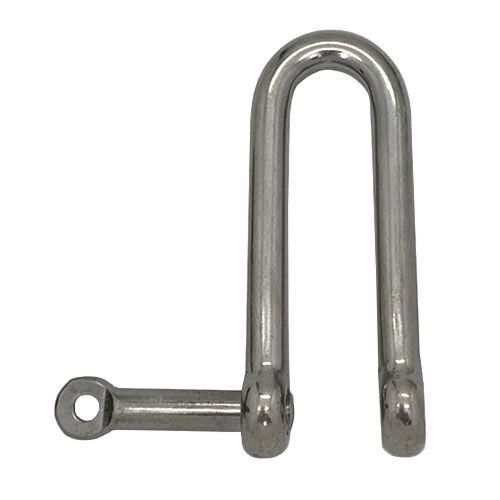

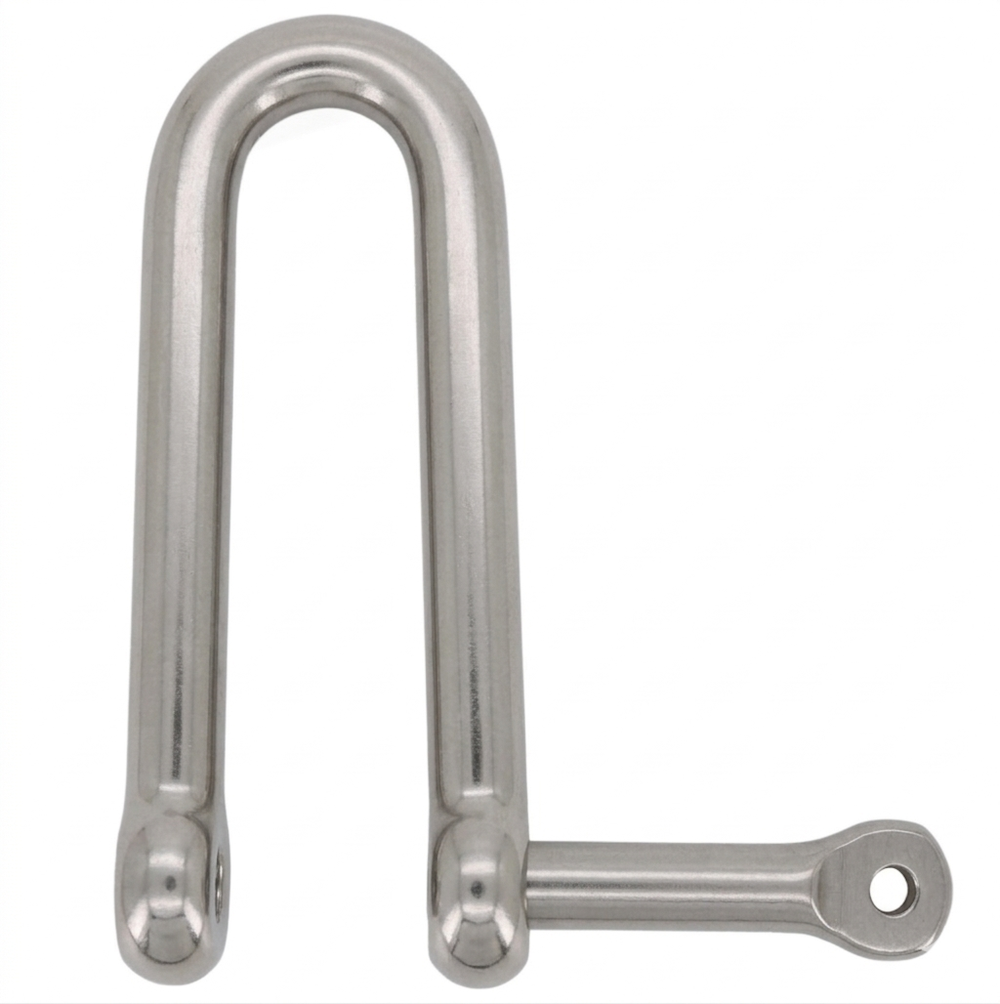

Stainless Steel Long D Shackles with Captive Pin

Take a look at our range of A4-AISI 316 stainless steel long D shackles with a high polished finish.

These D shackles come with a clever, shake proof captive fixed pin. The pin can be opened fully to allow fixings into the shackle mouth but cannot be totally removed from the body. This avoids any loss of your pin.

Our long pattern D shackles are available in 4mm, 5mm, 6mm, 8mm, 10mm and 12mm diameters. Order yours online today.

In stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Product Name	d (mm)	D (mm)	E (mm)	W (mm)	S (mm)	Break Load (Kgs)	PRICE
4mm Long D Shackle Captive Pin	4	4	8	8	32	700	£1.99 £1.66
5mm Long D Shackle Captive Pin	5	5	10	10	40	1100	£2.15 £1.79
6mm Long D Shackle Captive Pin	6	6	12	12	48	1600	£2.39 £1.99
8mm Long D Shackle Captive Pin	8	8	16	16	64	3200	£2.99 £2.49
10mm Long D Shackle Captive Pin	10	10	20	20	80	4900	£5.30 £4.42
12mm Long D Shackle Captive Pin	12	12	24	24	96	6600	£9.53 £7.94
