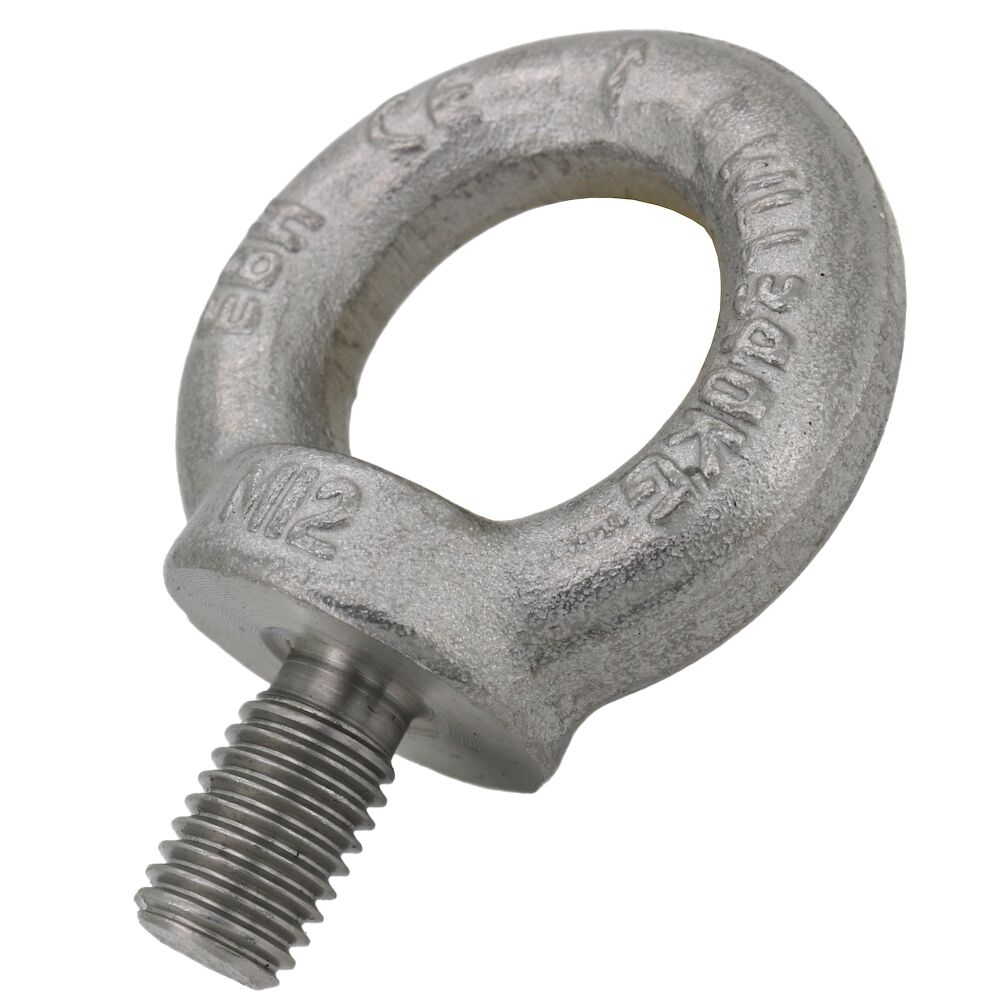

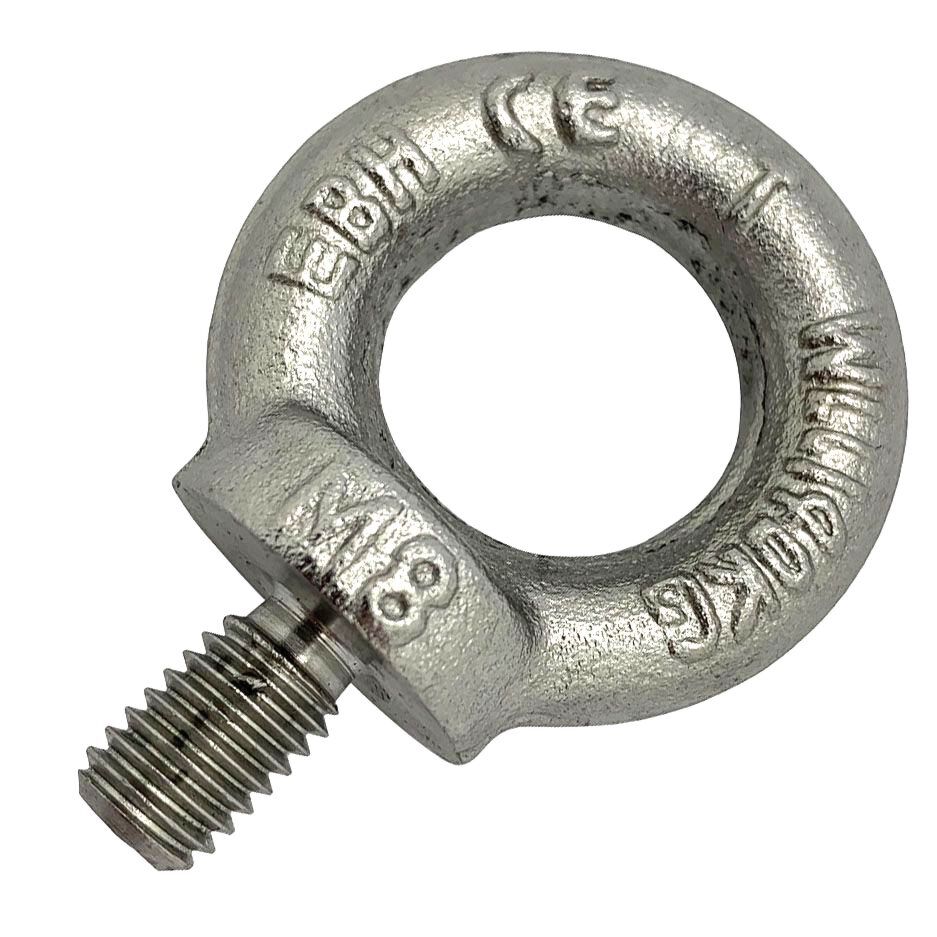

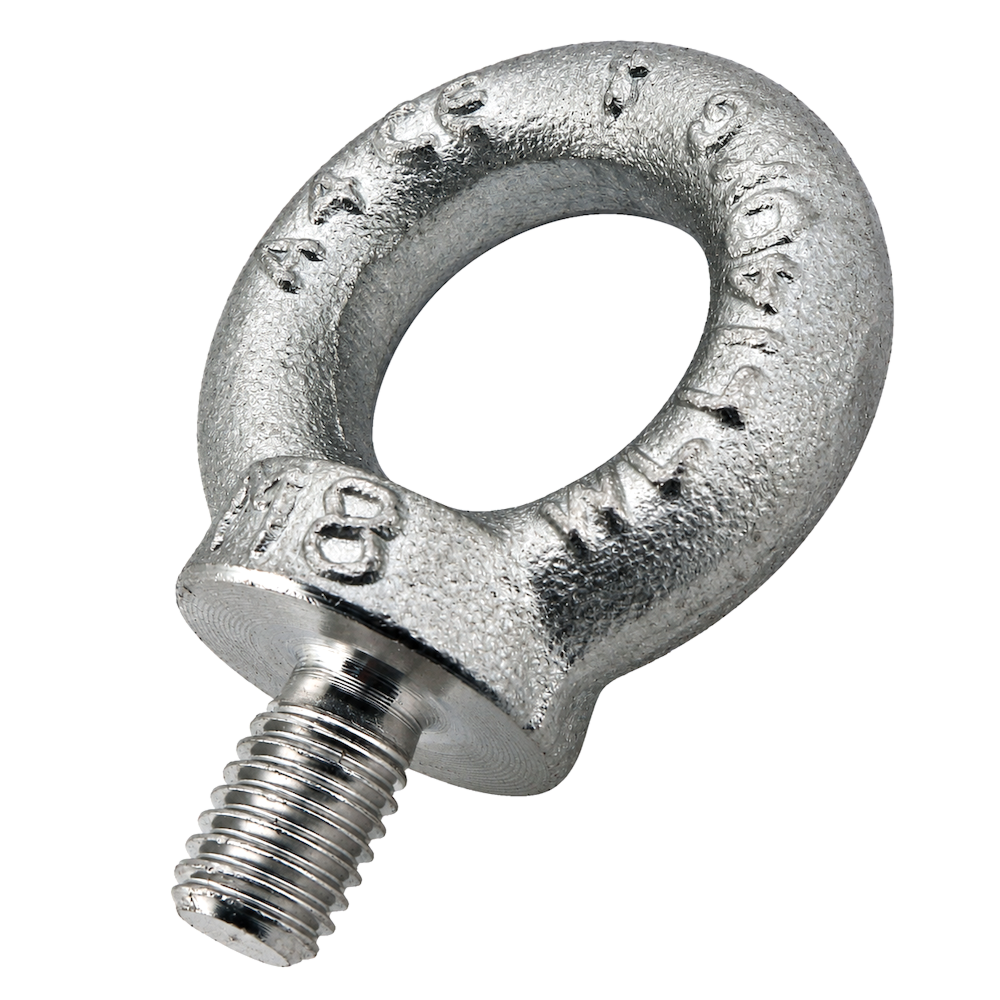

Stainless Steel Lifting Eye Bolts DIN 580 - Load Rated

A4-AISI 316 grade stainless steel lifting eye bolts are forged and tempered for extra strength.

These marine grade stainless lifting eye bolts have their working load limits rated and marked with a WLL on the body for clear guidance and safety. They are also CE marked.

Each lifting eye bolt is manufactured to DIN 580 specification.

Available in M8, M10, M12, M16, M20 and M24 diameters.

Please note that the WLL stated is for vertical lifts only.

In stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Product Name	L (mm)	H (mm)	D (mm)	E (mm)	WLL (kg)	PRICE
M8 Stainless Steel Eye Bolt	13	33	8	20	140	£3.79 £3.16
M10 Stainless Steel Eye Bolt	17	42	10	25	230	£6.22 £5.18
M12 Stainless Steel Eye Bolt	20.5	51	12	30	340	£11.99 £9.99
M16 Stainless Steel Eye Bolt	27	60	16	35	700	£16.13 £13.44
M20 Stainless Steel Eye Bolt	30	68	20	40	1200	£22.27 £18.56
M24 Stainless Steel Eye Bolt	36	86	24	50	1800	£32.04 £26.70
