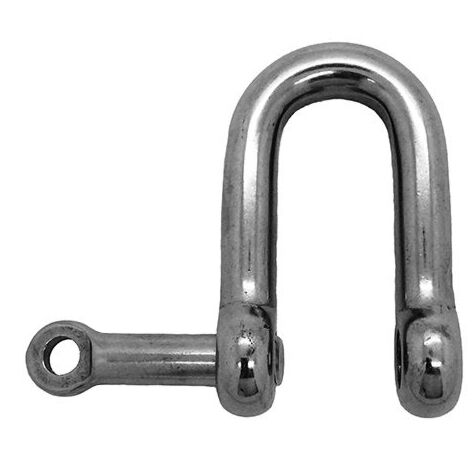

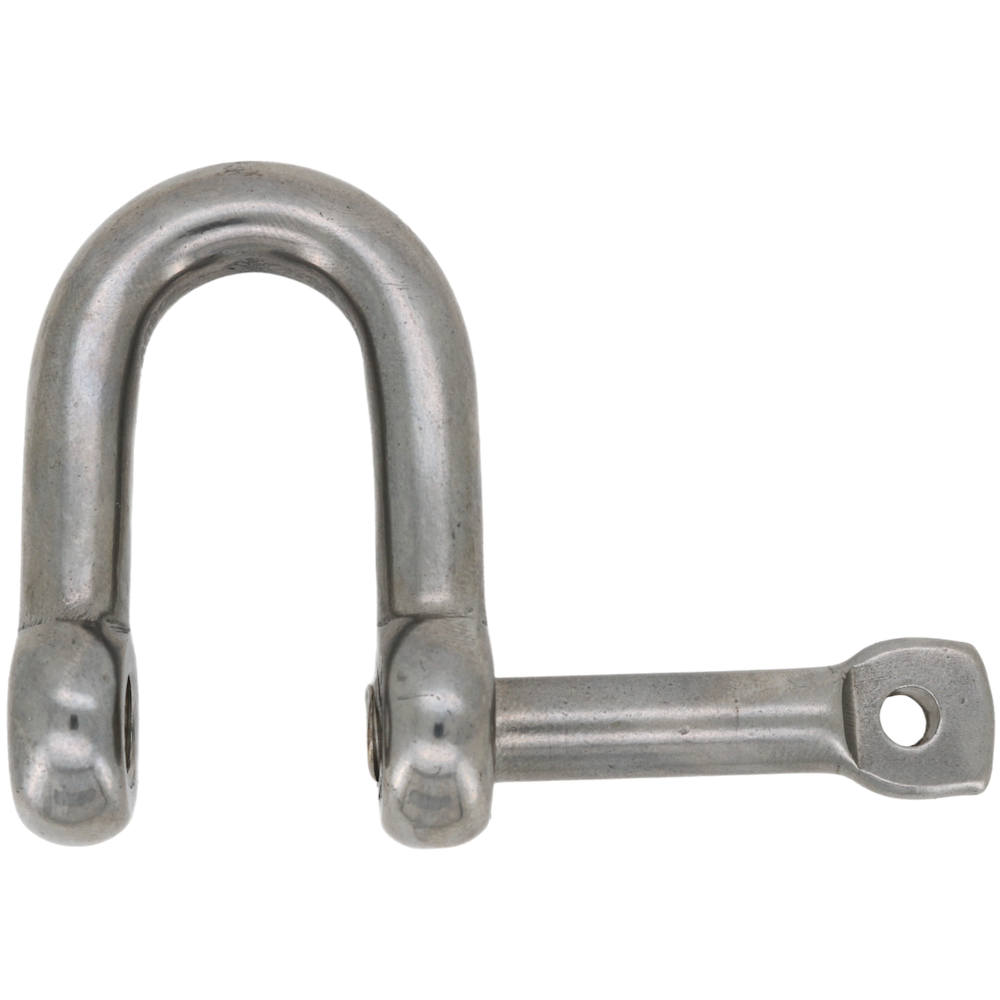

Stainless Steel D Shackles Captive Pin

Our D shackles are made with A4-AISI 316 stainless steel and have a high polished finish.

The unique shackle pin design can be fully opened but it can not be physically removed from the shackle body. This avoids any loss in tricky rigging conditions.

We have a range of sizes available: 4mm, 5mm, 6mm, 8mm, 10mm and 12mm. Order online today.

In stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Product Name	d (mm)	D (mm)	E (mm)	W (mm)	S (mm)	Break Load (Kgs)	PRICE
4mm Stainless Steel Captive Pin D Shackle	4	4	8	8	16	800	£1.19 £0.99
5mm Stainless Steel Captive Pin D Shackle	5	5	10	10	20	1100	£1.51 £1.26
6mm Stainless Steel Captive Pin D Shackle	6	6	12	12	24	1600	£1.55 £1.29
8mm Stainless Steel Captive Pin D Shackle	8	8	16	16	32	3200	£2.27 £1.89
10mm Stainless Steel Captive Pin D Shackle	10	10	20	20	40	4900	£3.59 £2.99
12mm Stainless Steel Captive Pin D Shackle	12	12	24	24	48	6600	£4.55 £3.79
