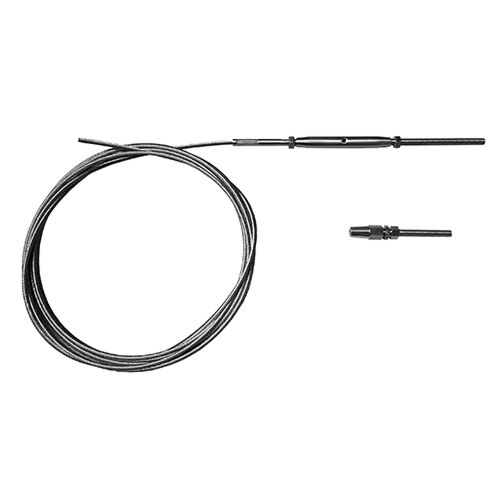

DIY Stainless Steel Wire Rope Balustrade Run Stud / Stud - 1 Meter

Ready to install A4 grade stainless steel polished swageless wire cable balustrade run. Comes with M8 RH studed ends, ideal for flat or curved steel posts.

This system is very convenient. You don't need and further items such as eye bolts or fixing straps to connect to steel balustrade posts to use it.

We make sure it's as cost effective as possible. There are no expensive swage tools required to install, simply fit the swageless end to complete each run.

End 1 is a rigging screw adjuster with a M8 stud. We supply already pre-swaged onto 4mm 1x19 stainless steel wire rope. It also comes with locking nuts.

End 2 is a swageless DIY fitting M8 stud. This can be easily attached to the blank end of the wire with basic tools (2 x spanners).

Overall length supplied is 1 meter. We also have other lengths available.

TOP TIPS

• Use one of our 8" steel wire rope cutters to cut the wire onsite to exact length required.
• When measuring always set the rigging screw at mid open point, this allows for adjustment either way on your balustrade ( +/- ).
• Clean once a year with a microfibre cloth and WD40.
• Cut your stud to length and cap off with a M8 stainless steel dome nut and stainless steel washers.
• We also sell M8 internal threaded dome nuts which would be perfect for easy installation.
