DIY Stainless Steel Wire Rope Balustrade Ball and Socket Run - 7.5 Meter

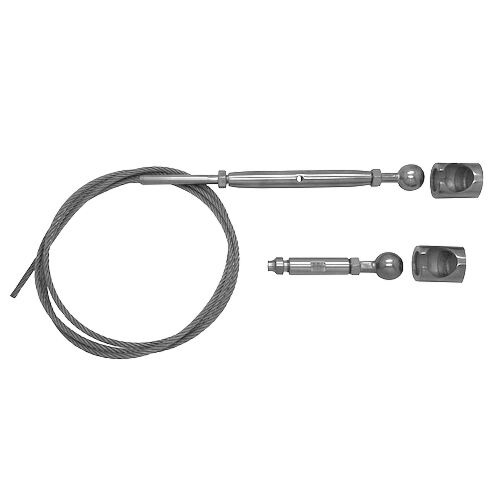

This steel wire rope infill balustrade run consists of:

•  7.5 meter length of 4mm 1x19 stainless steel wire rope. It comes pre swaged onto an adjustable rigging screw. Easy adjustments can be made by rotating the body clockwise or anti-clockwise
•  1 x stainless steel swage-less terminal. Easily fitted and adjustment can also be achieved with this terminal
•  2 x flat mounting sockets with fixing wood screws

All items in this kit are the best A4 grade stainless steel (AISI 316) for maximum corrosion resistance. The ball and socket fittings are flexible so this kit suits straight runs and angled runs upto 35 degrees such as stairs etc. As there are no special tools or additional parts required for this kit, it's always very popular.

Priced per run, simply buy as many runs as you require. Plus, we have more lengths available here

TOP TIPS

• Use one of our 8" steel wire rope cutters to cut the length to exact length required
• Always measure on site with the rigging screw open at mid-point, this allows for adjustment ( +/- )
• The swage-less ball can also be used as an adjuster as it can be screwed out approx 30mm
• Easily pass the wire through intermediate posts before attaching swageless fitting
• A 8mm diameter hole is recommended for intermediate post holes
• Check out our grommets here for the ultimate professional finish for your posts
• Wipe down once a year with a microfibre cloth and WD40
