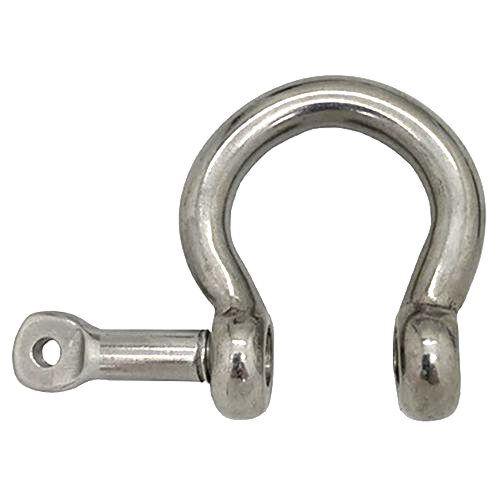

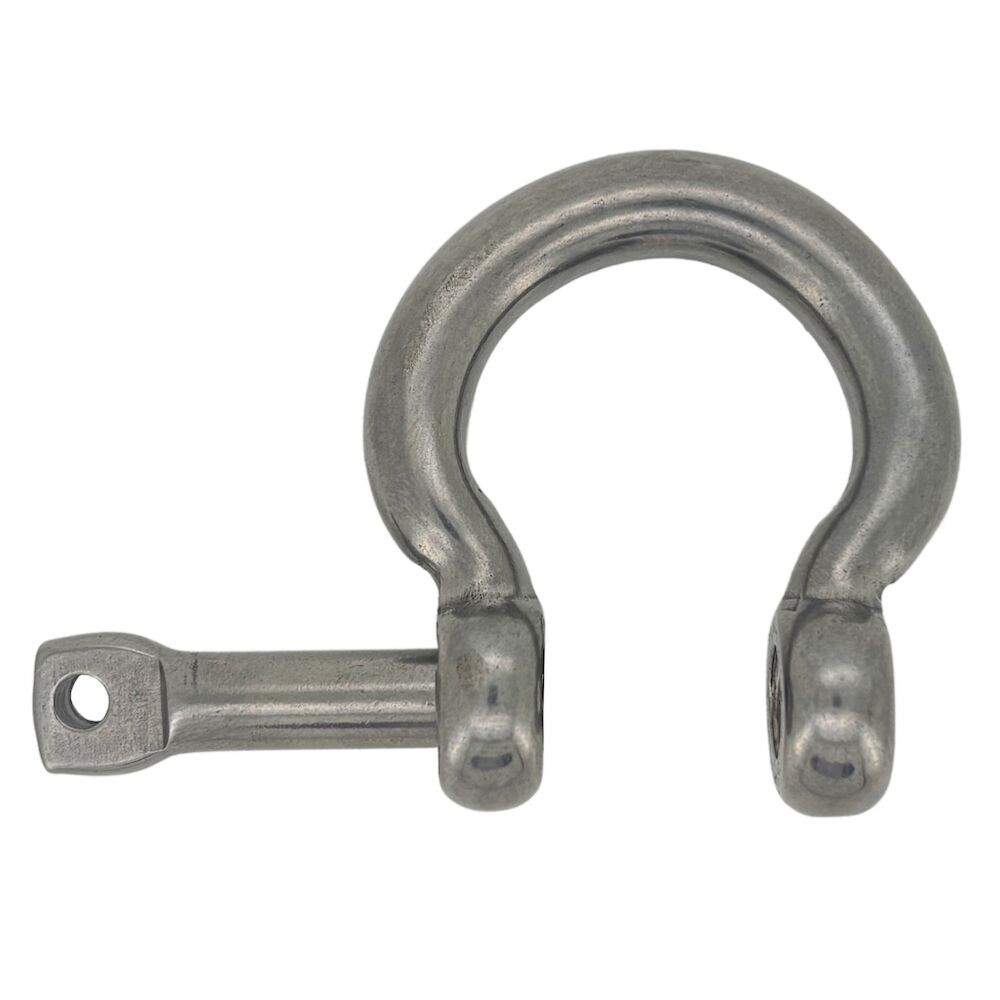

Stainless Steel Bow Shackle with Captive Pin

A4 marine grade AISI 316 - A4 stainless steel bow shackle with captive pin, high polished finish.

The shackle pin can be unscrewed and fully opened but it is captive in the body and can not be removed.

This captive pin systems is handy as it avoids loss and makes the shackle easier to use on board or in tight situations.

5mm, 6mm, 8mm, 10mm diameters available.

In stock

Grouped product items
Product Name	A (mm)	L (mm)	R (mm)	Ø (mm)	Break Load (Kgs)	PRICE
5mm Stainless Bow Shackle - Captive Pin	10	17.5	17	5	1200	£1.37 £1.14
6mm Stainless Bow Shackle - Captive Pin	12	21	21	6	1800	£1.55 £1.29
8mm Stainless Bow Shackle - Captive Pin	16	28	28	8	2800	£2.50 £2.08
10mm Stainless Bow Shackle - Captive Pin	20	35	34	10	4300	£4.61 £3.84
