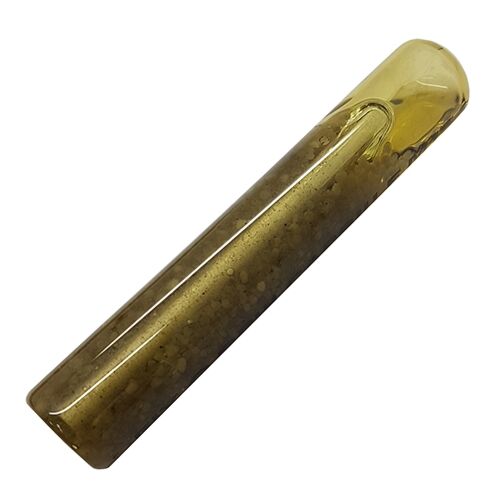

Spin In Quartz Anchor Capsules ETA Option 7

This spin in glass capsule anchor is used with the threaded studs to provide a stress free anchorage in concrete.

Made with epoxy acrylate.

The quartz aggregate contained in the capsule enable the anchor to acheive exceptional loads.

Our quartz spin in capsules are suitable for use in solid concrete and some brickwork and natural stone where an expansion free, high strength fixing is required.

M8-M30 sizes available

Click here for full performance data.

In stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Product Name	Suit Thread Dia (mm)	Capsule Dia (mm)	Drill Hole Dia (mm)	Capsule Length (mm)	Drill Min Hole Depth (mm)	PRICE
8mm (M8) Spin in Quartz Capsule	8	9	10	80	80	£1.44 £1.20
10mm (M10) Spin in Quartz Capsule	10	11	12	80	90	£1.74 £1.45
12mm (M12) Spin in Quartz Capsule	12	13	14	95	110	£2.11 £1.76
16mm (M16) Spin in Quartz Capsule	16	17	18	95	125	£2.39 £1.99
20mm (M20) Spin in Quartz Capsule	20	17	22	160	170	£3.30 £2.75
24mm (M24) Spin in Quartz Capsule	24	22	26	175	210	£3.77 £3.14
30mm (M30) Spin in Quartz Capsule	30	25	32	230	280	£6.22 £5.18
