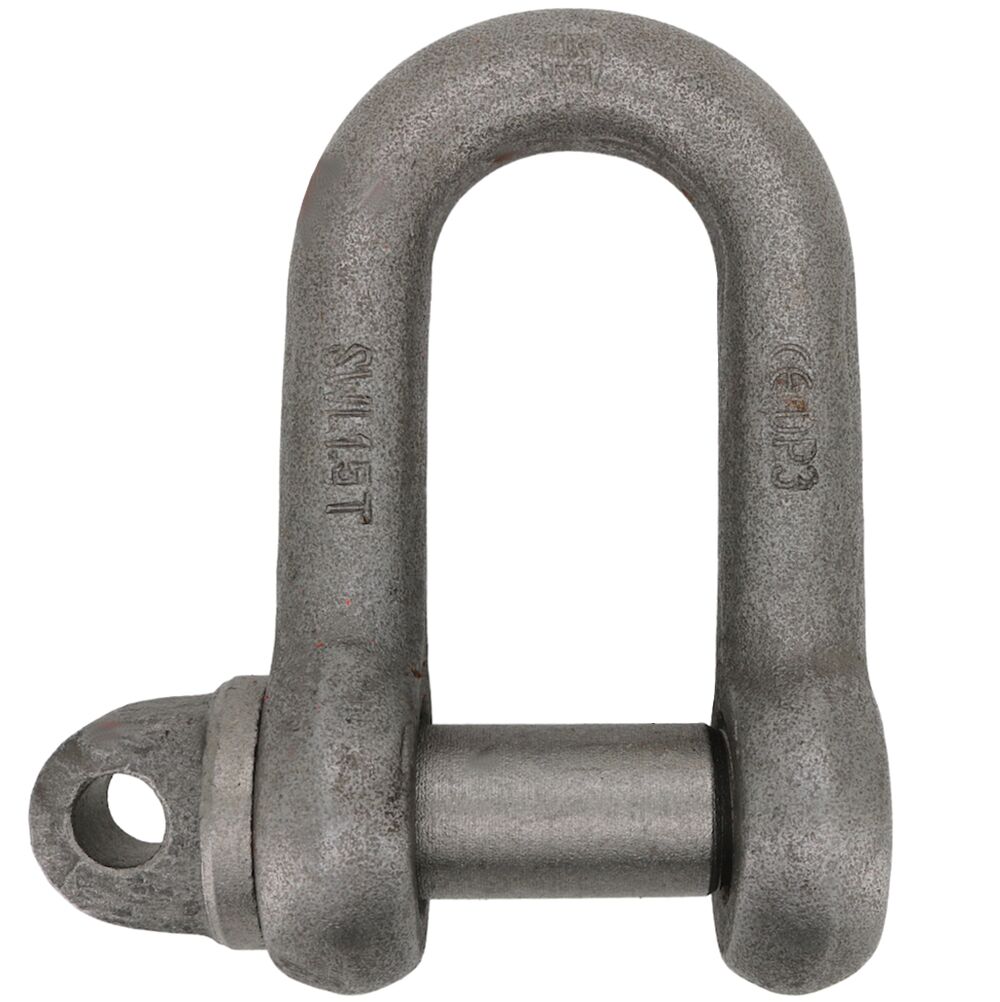

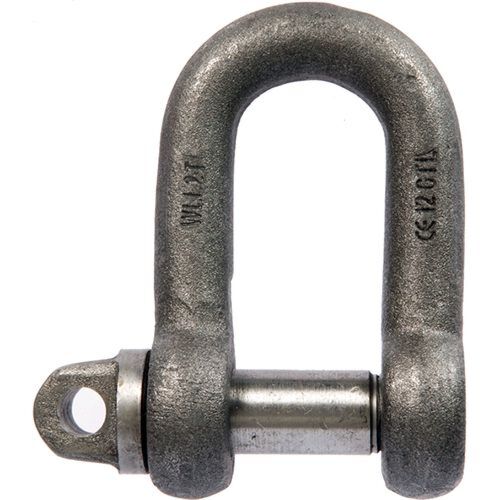

Self Colour Large D Shackles BS 3032

GS Products supply large non plated D shackles to BS 3032 specification.

They are made with high tensile self colour steel C1045.

Each shackle has a factor of safety 4:1

The shackle body is marked with its WLL limit.

Type A screw collar pin.

In stock

Grouped product items
Product Name	D (inches)	E (inches)	WLL (tonnes)	A (inches)	B (inches)	C (inches)	PRICE
3/8" 0.50 Tons D Shackle	1-1/2"	1"	0.50	3/8"	1/2"	3/4"	£2.52 £2.10
1/2" 0.75 Tons D Shackle	2-1/8"	1-1/4"	0.75	1/2"	5/8"	1-1/8"	£3.48 £2.90
5/8" 1.50 Tons D Shackle	2-1/2"	1-1/2"	1.50	5/8"	3/4"	1-1/4"	£5.83 £4.86
3/4" 2.00 Tons D Shackle	2-7/8"	1-3/4"	2.00	3/4"	7/8"	1-1/2"	£9.98 £8.32
7/8" 3.00 Tons D Shackle	3-1/4"	2"	3.00	7/8"	1"	1-3/4"	£13.25 £11.04
1" 3.75 Tons D Shackle	3-3/4"	2-1/4"	3.75	1"	1-1/8"	2"	£17.33 £14.44
1-1/8" 5.00 Tons D Shackle	4-1/8"	2-1/2"	5.00	1-1/8"	1-1/4"	2-1/8"	£22.15 £18.46
