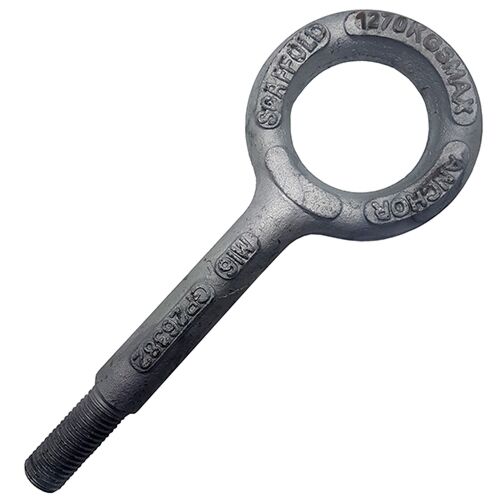

Scaffold Ring Eye Bolt

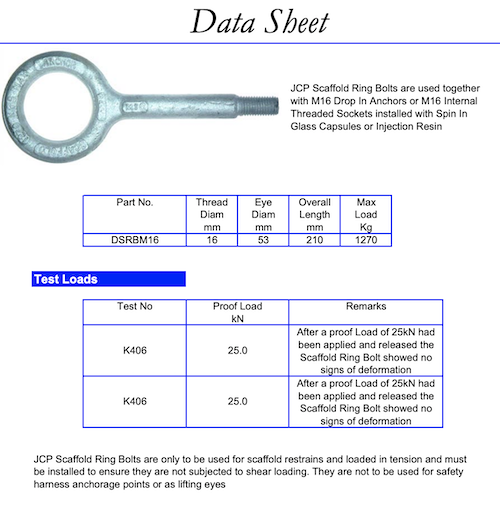

JCP Scaffold restraining ring bolts are used together with M16 drop in anchors or M16 internally threaded sockets for restraining scaffolding.

Scaffold restraining eye bolts have a max load of 1270kgs.

Made with forged steel.

Each scaffold ring eye bolt has a M16 thread diameter.

Scaffold ringbolts are only to be used for Scaffolding restraint, loaded in tension and must be installed to ensure they are not subjected to shear loading.

They are not to be used for safety harness anchorage points or as lifting eyes.
