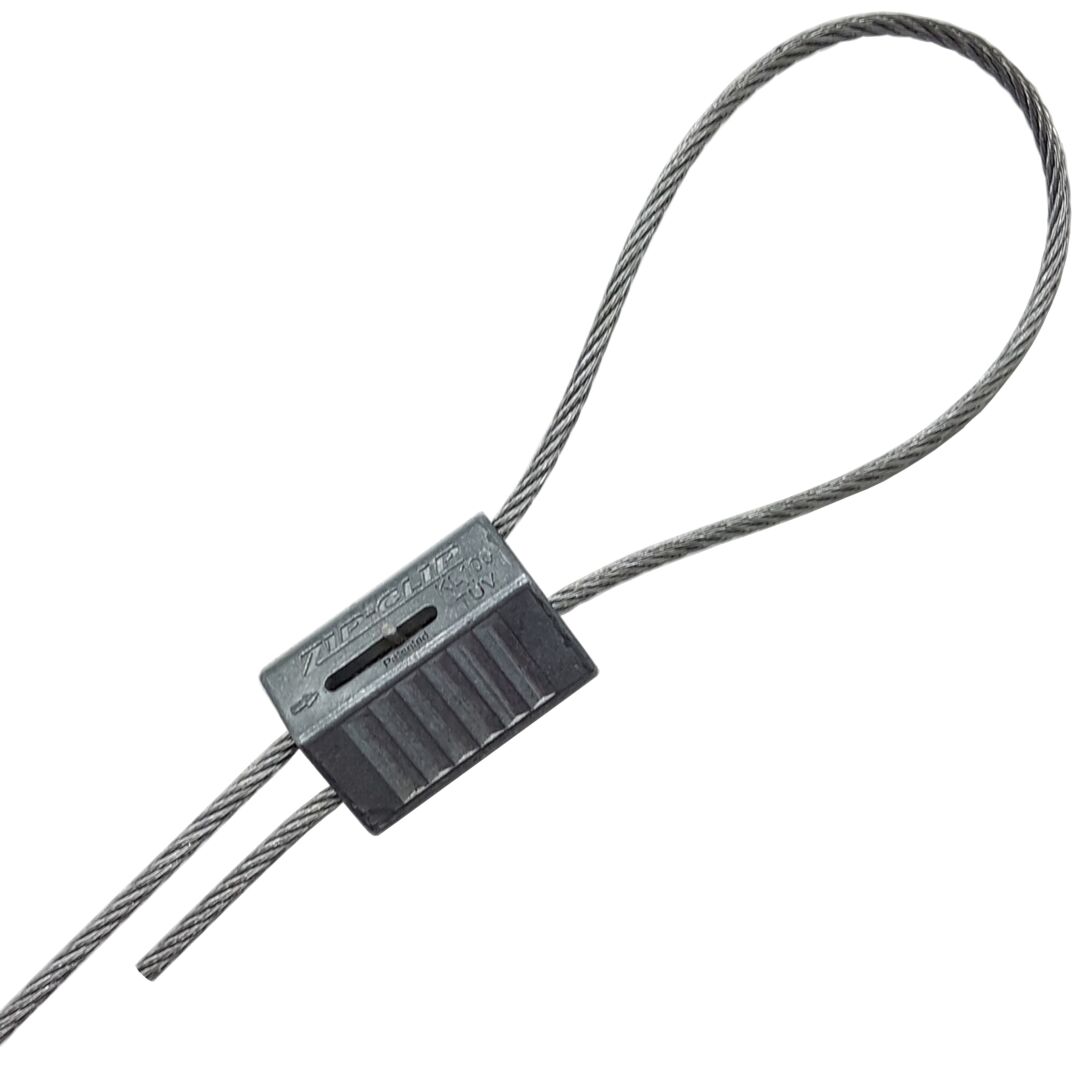

KL50 Zip-Clip Rize Steel Wire Rope Grip (1mm - 1.25mm Wire)
In stock
SKU: KL50
| Model Number | KL50 |
| Suits Wire | 1mm - 1.25mm |
| W | 20mm |
| L | 13mm |
| SWL | 15kgs |
- Key free, easy release system Zip-Clip Rize steel wire rope grips
- Suitable for use with galvanised steel wire rope
- Can be re-used
- Perfect for use with a variety of tasks, can be used with steel works, I beams or purlins
- Ideal for suspended lengths of HVAC, electrical, signage and many more applications where a quick and secure wire grip is required
- SWL stated load is only valid when used with Zip-Clip branded steel wire ropes only
£1.49
£1.24
Installation guide
- Cut wire to desired length for the drop required
- Pass one end of the wire through the zip-clip in the direction of the arrow on the zip-clip Rize body and draw through enough wire to go around your fixing point
- Pass the wire end back through the zip-clip leaving at least 15cm of free wire protruding
- At the other end again pass the wire through the zip-clip in the direction of the arrow
- Pass the free end of wire around your suspension or through your fixing and back through the zip-clip leaving 15cm of wire protruding
- Always confirm engagement of the zip-clip on the wire by pushing the pin in the opposite direction to the arrows indicated
