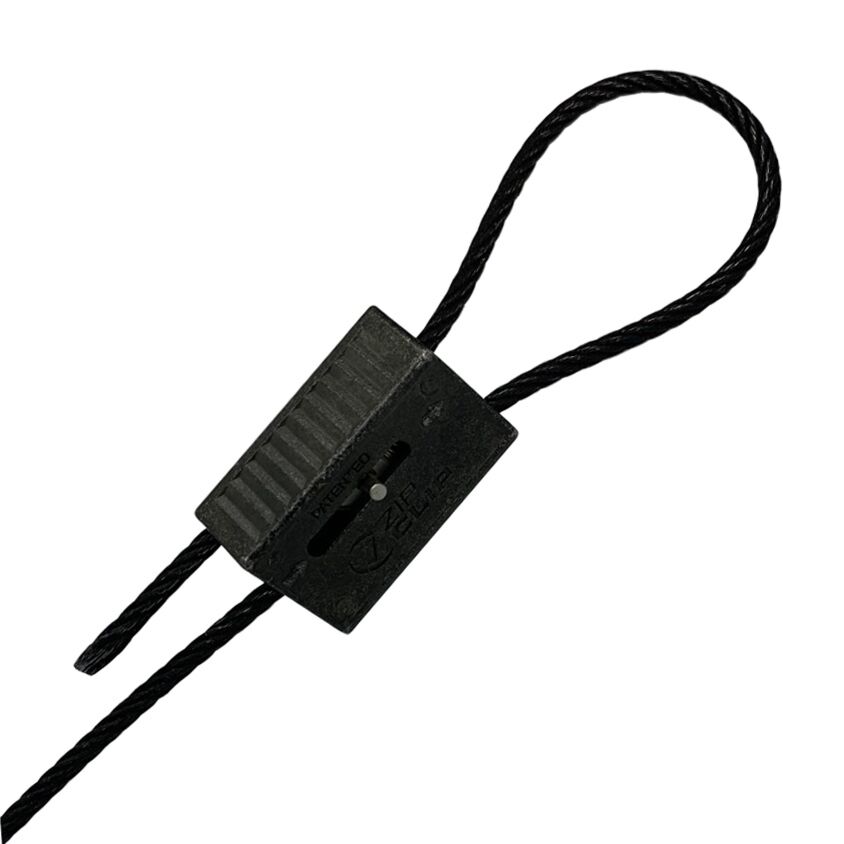

PACK OF 25 - Blackened KL100 Zip-Clip Rize Steel Wire Rope Grip (1.5mm - 2.3mm Wire)

In stock
SKU: BLKKL100-25
Model Number BLK/KL100
Suits Wire  1.5mm - 2.3mm
W 26mm
L 18mm
SWL 50kgs




Check out this key free, easy release system Zip-Clip Rize steel wire rope grip that's been chemically blackened and available in packs of 25 units

Suitable for use with blackened galvanised steel wire rope and can be re-used.

Perfect for use in theatre, stage production, shops, sign hanging or in any environment where you want the fitting to be discreet.

Show Price without VAT
£87.36 £72.80



Installation guide

  • Cut wire to desired length for the drop required
  • Pass one end of the wire through the zip-clip in the direction of the arrow on the Zip-Clip Rize body and draw through enough wire to go around your fixing point
  • Pass the wire end back through the zip-clip leaving at least 15cm of free wire protruding
  • At the other end again pass the wire through the zip-clip in the direction of the arrow
  • Pass the free end of wire around your suspension or through your fixing and back through the zip-clip leaving 15cm of wire protruding
  • Always confirm engagement of the zip-clip on the wire by pushing the pin in the opposite direction to the arrows indicated

Zip-Clip drawing
