Gripple Lockable D3 Steel Wire Rope Catenary Kits
Create secure, overhead spans by running high strength wire rope between two fixing points with this Gripple Catenary Kit. Ideal for applications where no direct vertical anchor point is available

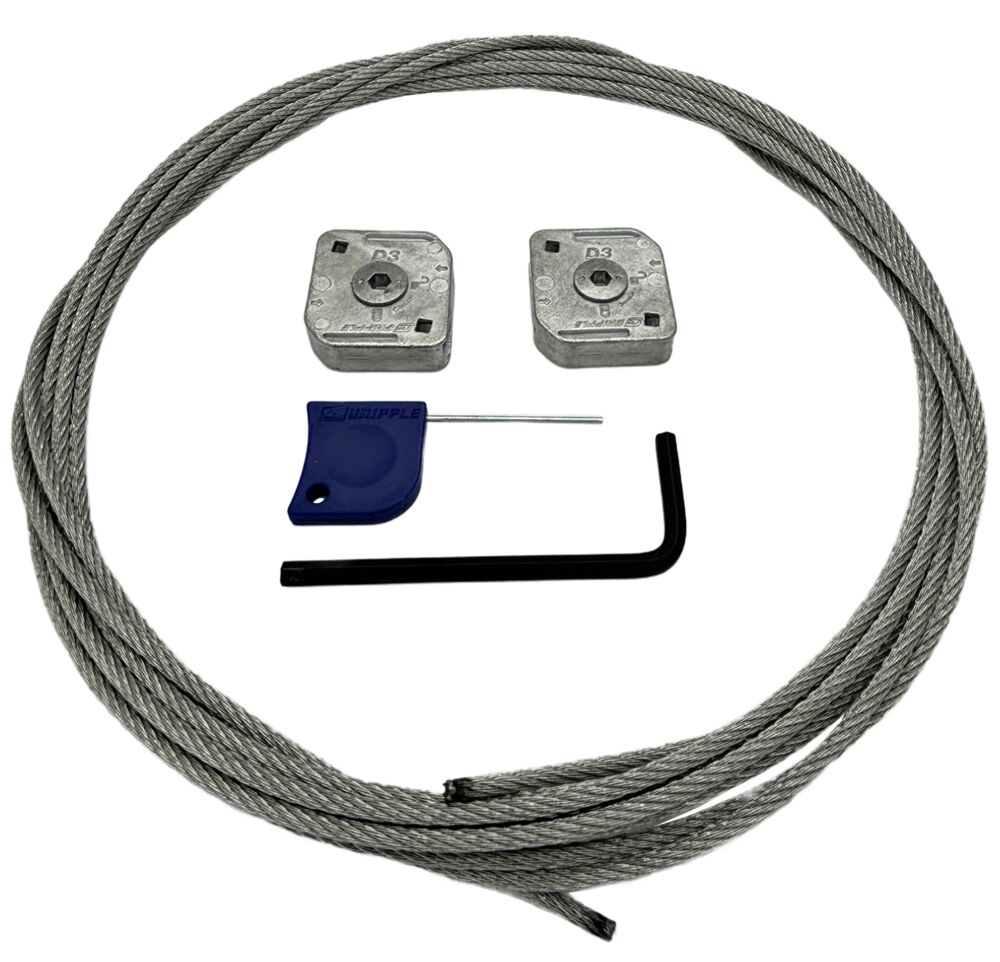

Our Gripple Kits come with..
- 3mm diameter steel wire rope
- 2 x lockable D3 Gripples
- Flag release key
- Hex key
- Length of 3mm 7x7 galvanised steel wire rope (5 meter, 10 meter or 20 meter lengths available)
In stock

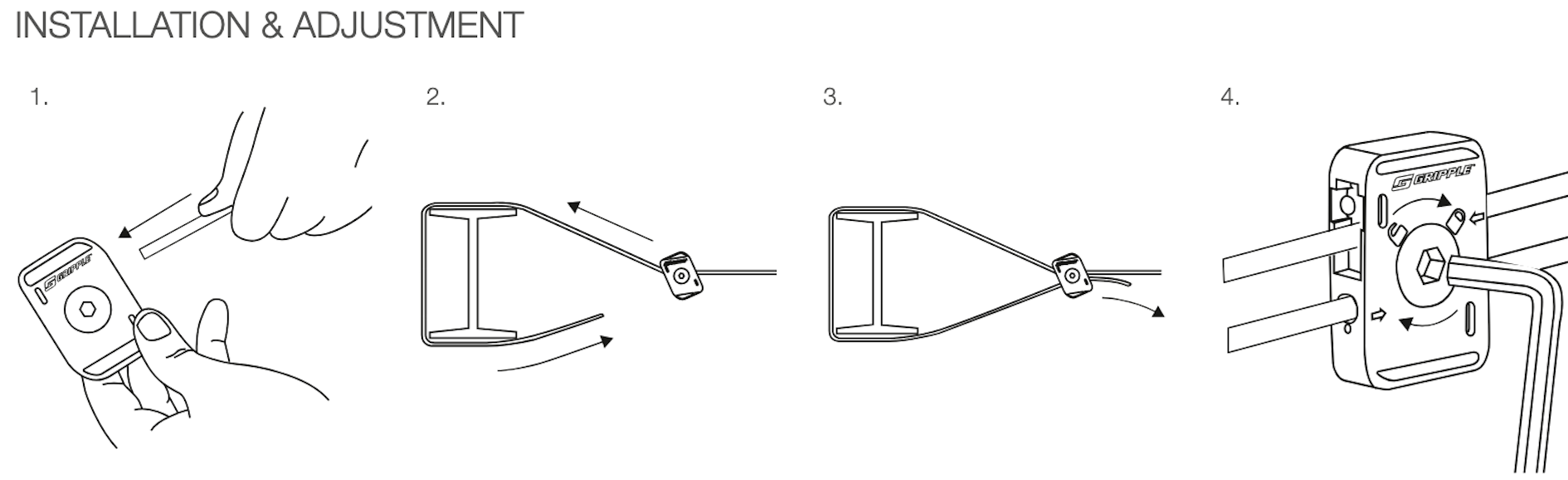

- Pass the end of your cable through the gripple
- Loop around fixing point
- Pass cable back through the gripple and tighten - be sure to leave 100mm of cableas the tail
- Use the supplied hex key to lock gripple into place. The supplied flag key can be used to release if you require adjustment
This Gripple Catenary Kit offer many advantages...
- Versatile - can easily be used for a variety of applications including lighting, HVAC, pipework and electrical containment
- Quick - fewer components compared to traditional methods, up to six times faster to install than traditional suspension systems
- Aesthetic - the design complements enclosed and open soffit spaces providing a discreet finish
- Safe - no 'hot works' permit required for installation, improving health and safety on-site
- Easily tensioned - using the Gripple Catenary Tensioning Tool reducing time spent working at height
- Secure - locking mechanism in the Lockable Plus™ prevents dynamic movements
- Strong - industry approved
- Lightweight - easy to move and handle on-site, whilst reducing the load on the building structure
