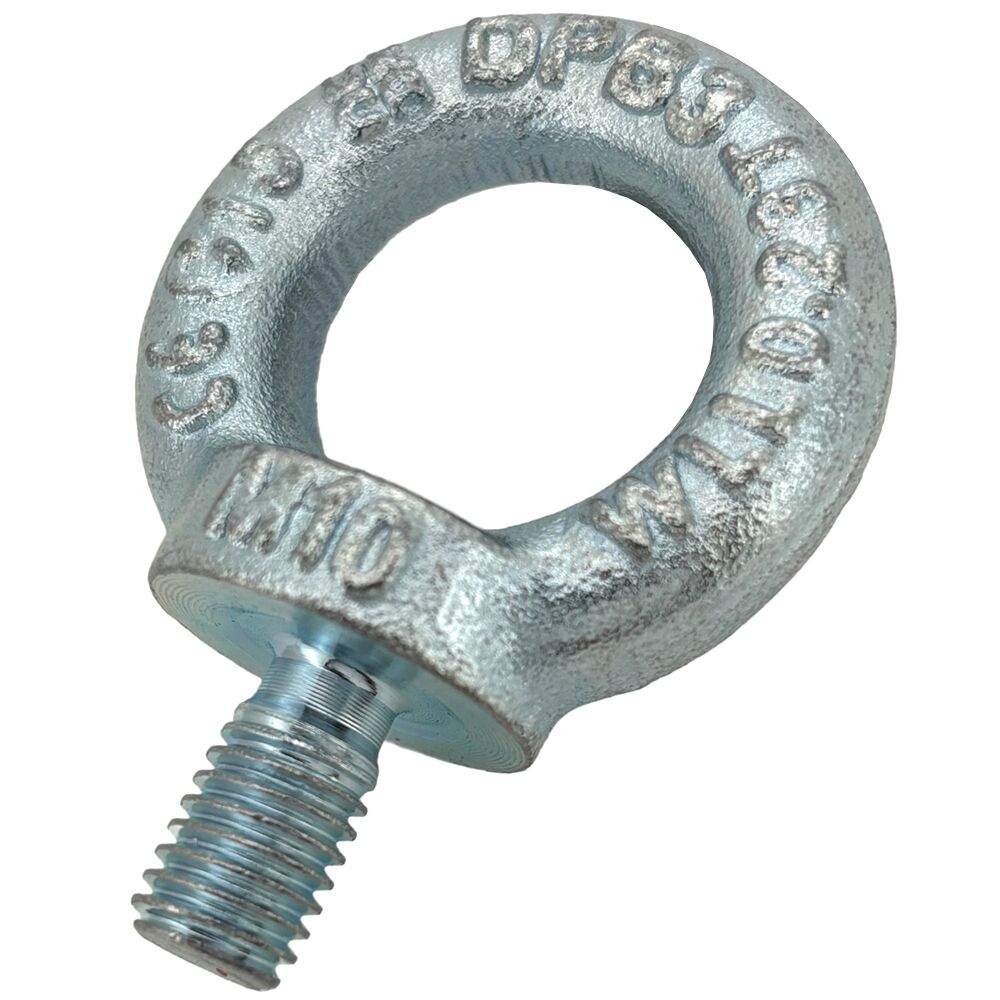

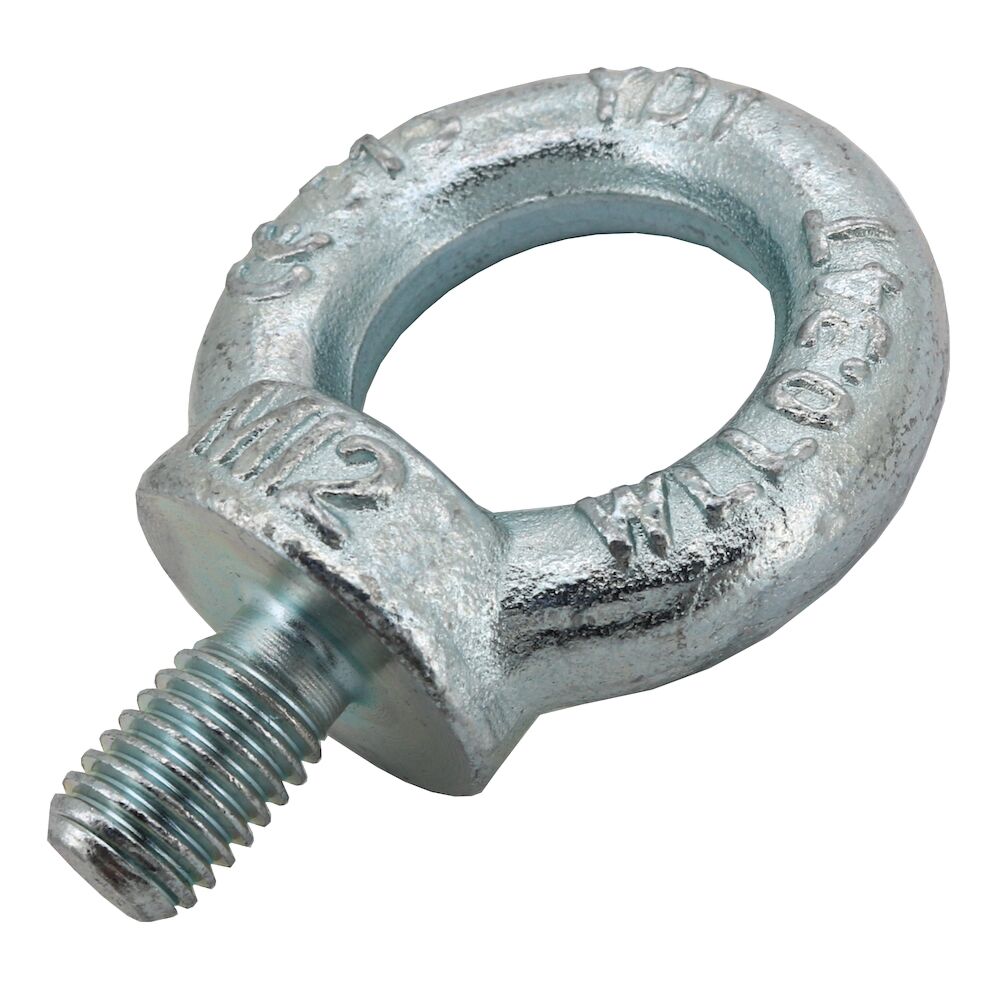

BZP Steel DIN 580 Lifting Eye Bolts

These lifting eye bolts are bright zinc plated for the ultimate combination of quality and strength. Marine grade, they are tough, durable and corrosion resistant, perfect for use outdoors.

DIN 580 collared lifting eye bolts are capable of handling working loads between 70kg and 8600kg, and safe working load specifications are forged onto each individual eye bolt body so you can always be sure of their lifting limits.

They are available as metric course right handed thread, in sizes M6, M8, M10, M12, M16, M20, M24, M30, M36, M42 and M48.

In stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Product Name	B (mm)	H (mm)	D (mm)	D1 (mm)	D2 (mm)	D3 (mm)	K (mm)	SWL (Kgs)	PRICE
M6 Eye Bolt	9	18	M6	20	36	20	6	70	£0.55 £0.46
M8 Eye Bolt	15	18	M8	20	36	20	8	140	£0.58 £0.48
M10 Eye Bolt	18	22	M10	25	45	25	10	230	£0.79 £0.66
M12 Eye Bolt	22	26	M12	30	54	30	12	340	£1.18 £0.98
M16 Eye Bolt	28	30	M16	35	63	35	14	700	£2.06 £1.72
M20 Eye Bolt	30	35	M20	40	72	40	16	1200	£2.50 £2.08
M24 Eye Bolt	38	45	M24	50	90	50	20	1800	£5.38 £4.48
M30 Eye Bolt	45	55	M30	60	108	60	24	3600	£10.49 £8.74
M36 Eye Bolt	54	64	M36	75	126	70	28	5100	£16.94 £14.12
M42 Eye Bolt	63	73	M42	85	144	89	32	7000	£29.04 £24.20
M48 Eye Bolt	68	84	M48	100	166	90	38	8600	£56.35 £46.96
