Zip‑Clip is the strong, stylish, sensible, high-spec suspension solution as well as an easy to use steel wire rope grip.
The unique Zip‑Clip system, based on a simple yet highly effective locking mechanism, is easier to handle, simpler to install and brings far more versatility.
With an ingenious design, high-tensile galvanised wire rope is used in conjunction with a zinc alloy locking device, housing an oil-impregnated sintered metal wedge that engages first time without the need for any tools, simply slide down the adjustment pin.

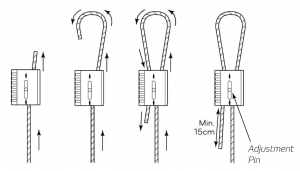

Installation guide…
1. Cut wire to desired length for the drop required
2. Pass one end of the wire through the zip-clip in the direction of the arrow on the Zip-Clip Rize body and draw through enough wire to go around your fixing point
3. Pass the wire end back through the zip-clip leaving at least 15cm of free wire protruding
4. Always confirm engagement of the zip-clip on the wire by pushing the pin in the opposite direction to the arrows indicated
