7x19 Galvanised Steel Wire Rope Per Meter - Custom Lengths

Extra flexible galvanised steel wire rope with a 7x19 construction is suitable where high flexibility & fatigue performance are important, 3mm - 16mm diameter available from stock

7x19 strand wire rope is the best wire if you are looking to create an eyelet with a ferrule or wire rope grips as it easily turns back on itself

PRICED PER METER - Simply add your required meterage into the quantity box and you will receive your steel wire rope in 1 reeled length

In stock
Grouped product items
Product Name Ø (mm) Break Load (Kgs) Weight (Kgs/100mtrs) PRICE Qty
3mm 7x19 Galvanised Steel Wire Rope - Per Meter 3 588 3.43
£0.35 £0.29
4mm 7x19 Galvanised Steel Wire Rope - Per Meter 4 1045 6.24
£0.56 £0.47
5mm 7x19 Galvanised Steel Wire Rope - Per Meter 5 1633 9.53
£0.71 £0.59
6mm 7x19 Galvanised Steel Wire Rope - Per Meter 6 2351 13.72
£0.89 £0.74
8mm 7x19 Galvanised Steel Wire Rope - Per Meter 8 4180 24.38
£1.52 £1.27
10mm 7x19 Galvanised Steel Wire Rope - Per Meter 10 6531 38.15
£2.52 £2.10
12mm 7x19 Galvanised Steel Wire Rope - Per Meter 12 9405 54.20
£3.98 £3.32
13mm 7x19 Galvanised Steel Wire Rope - Per Meter 13 11038 64.39
£4.67 £3.89
14mm 7x19 Galvanised Steel Wire Rope - Per Meter 14 12082 74.89
£4.79 £3.99
16mm 7x19 Galvanised Steel Wire Rope - Per Meter 16 16721 97.54
£5.87 £4.89
Show Price without VAT

1770 grade 7x19 strand galvanised steel wire rope is an engineering wire as it is very flexible, it is ideal to use if you want to bend the wire back on itself to create eyelets

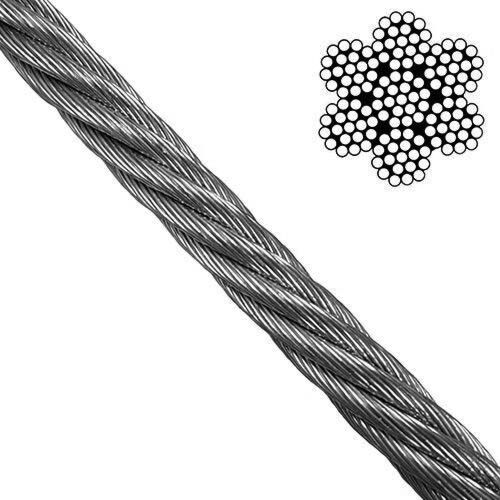

The wire has 7 main strands which are formed by 19 smaller strands, the large amount of smaller strands that are wound to make this wire rope makes it very flexible

Common used of flexible 7x19 strand wire ropes are:

  • Engineering ropes
  • Lifting slings
  • Control cables
  • Davit ropes
  • Standing rigging
  • Security wire ropes
  • Wire strops
  • Eyelet ends

This wire rope is available to order in a custom length, eg. if you require 70 meters simply add '70' into the quantity box and we reel 70 meters off and send it in one length on a coiled reel
