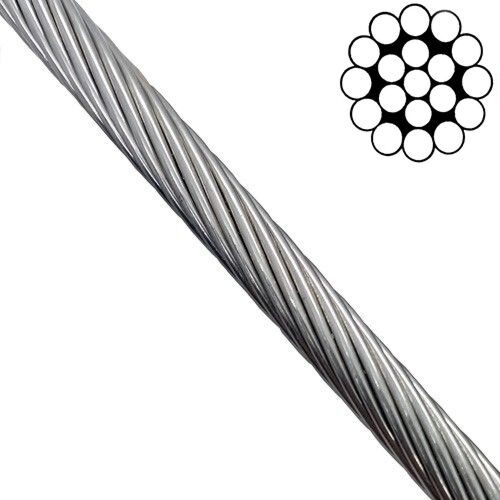

1x19 Stainless Steel Wire Rope - Custom Lengths

Our A4 - AISI 316 marine grade stainless steel 1x19 is made up of 19 single wires which makes it stronger than other available strand. It has very little flexibility, stretch or twist and is a very rigid.

This stainless steel wire rope is commonly used for architectural rigging, boat yacht rigging, guard rail wires, balustrading, landscaping, and more.

We would not recommend using this wire with any wire rope grips as it too stiff.

PRICED PER METER - add your required meterage into the quantity box and we will reel it off to your custom length. If you require 150 meters simply add '150' into the quantity box and we will reel the required meterage off onto your custom length reel.

In stock
Grouped product items
Product Name Ø (mm) Break Load (Kgs) Weight (Kgs/100mtrs) PRICE Qty
1mm 1x19 Stainless Steel Wire Rope - Per Meter 1 84 0.50
£0.16 £0.13
1.5mm 1x19 Stainless Steel Wire Rope - Per Meter 1.5 189 1.11
£0.22 £0.18
2mm 1x19 Stainless Steel Wire Rope - Per Meter 2 336 1.98
£0.34 £0.28
2.5mm 1x19 Stainless Steel Wire Rope - Per Meter 2.5 525 3.10
£0.67 £0.56
3mm 1x19 Stainless Steel Wire Rope - Per Meter 3 756 4.46
£0.79 £0.66
4mm 1x19 Stainless Steel Wire Rope - Per Meter 4 1344 7.92
£1.07 £0.89
5mm 1x19 Stainless Steel Wire Rope - Per Meter 5 2101 12.38
£2.16 £1.80
6mm 1x19 Stainless Steel Wire Rope - Per Meter 6 3025 17.82
£4.13 £3.44
7mm 1x19 Stainless Steel Wire Rope - Per Meter 7 4117 24.25
£5.39 £4.49
8mm 1x19 Stainless Steel Wire Rope - Per Meter 8 5377 31.68
£5.99 £4.99
Show Price without VAT

Questions and Answers

Q. How do i order 120 meters?

If you require 120 meters then simply add '120' into the quantity box and we will supply it in on a 120 meter reel

Q: What does 1x19 wire strand mean?

It simply means that the wire is made up of 19 individual strands

Q: What is the diameter of 3mm 1x19 stainless wire rope?

The overall diameter is 3mm

Q. Would you recommend 1x19 stainless steel wire rope for balustrade?

Yes, it is perfect, it is our stiffest strand and perfect for straight runs

Q. Can i bend this wire back and make loops?

No, this wire is too stiff, if you want to make eye at the end with ferrules for wire rope grips we will recommend a more flexible 7x19 strand

Q. What is the lead time if i order this wire today

Usually 1-2 working days

Q: Will this wire be reeled onto a wooden reel?

Usually yes, but this depends on how much wire rope you order, if it is a small amount for it will not be on a reel, also smaller diameters maybe supplied on a smaller cardboard reel which have a steel center

Q: What do i do if i require specific cut lengths?

Simply leave us a note on checkout and we will do this for you within reason  (see below)
